Features of YFR-04 Drone Airborne Radar

Tactical-level rapid response:
0.5-second data refresh rate + ±45° electronic scanning range, can instantly lock sudden threats (such as sniper bullets, FPVs).
Urban environment expertise:
Multi-band selection (X / Ku / Ka band radar) adapts to different urban clutter conditions, and the Ku-band D type can even penetrate light vegetation.
UAV coordination capability:
The 12-15kg model can directly mount medium-sized UAVs to build a “low-altitude early warning network”, and the cost is only one ten-thousandth of that of early warning aircraft.

Overview

YFR-04 is a pulse Doppler radar with a two-dimensional phase-scan system. It has the following characteristics: strong anti-interference ability, strong environmental adaptability, multi-platform deployment, and low power consumption.

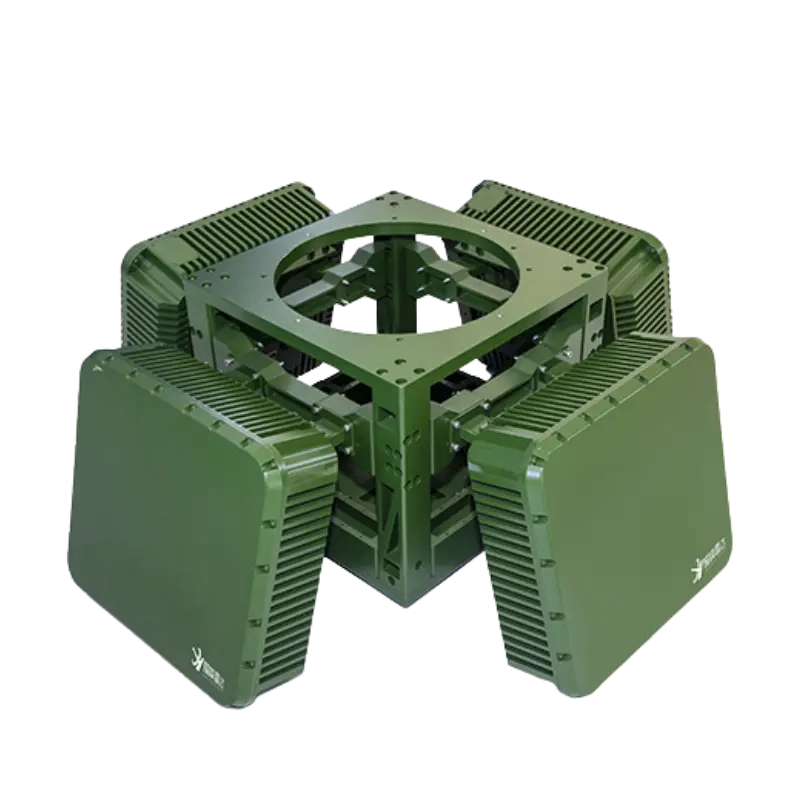

Drone airborne radar YFR-04 is a rare lightweight full-phase scan radar in the world. Traditional phased array radars are large (such as AN/TPY-2 weighing 20 tons), while it is only 40kg, subverting the perception that phased arrays must be bulky.

Multi-band adaptation (Ka/X/Ku)

Ka-band (A type): extremely high accuracy (≤0.5°), but short detection distance (≥2km), suitable for single soldier or UAV-mounted ultra-short-range surveillance.
X-band (B/C type): balanced detection distance (3-6km) and anti-rain attenuation capability, strong versatility.
Ku-band (C-Ku/D type): taking into account accuracy (≤0.3°) and medium- and long-range capabilities (D type ≥8km), suitable for complex electromagnetic environments.

Lightweight design

The lightest is only 12kg (Type B), the minimum size is ≤350×350×155mm, and it can be carried by drones to achieve flexible deployment of “air radar stations”.

Ultra-high data rate (0.5 seconds)

Far exceeding traditional mechanical scanning radar (usually 3-6 seconds), and can track high-speed maneuvering targets (such as drone swarms and cruise missiles) in real time, making it a strong anti-drone radar

Azimuth phase scanning + pitch phase scanning

Using phased array technology, the beam direction can be quickly adjusted without mechanical rotation, with extremely fast response speed (data rate 0.5 seconds), suitable for high-dynamic target tracking.

Pulse Doppler + three-coordinate positioning

With both speed measurement and anti-clutter capabilities, it can accurately obtain target distance, azimuth, and pitch information, especially suitable for urban multipath interference environments.

Features

Applications

Portable radars quickly fill the low-altitude blind spots of the air defense network.

Protection of key facilities: drone monitoring, interception and guidance in areas such as airports, nuclear power plants, and government buildings.

Swarm Command Center: The drone is equipped with a Type B radar to provide the swarm with real-time air situation information to avoid enemy interception.

Vehicle-mounted short-range air defense: D-type radar + Ku-band guided laser weapon, intercepting drones/cruise missiles within 3-8km.

Individual battlefield perception: Soldiers carry a Type A radar to detect corners and then ambush targets (using multipath reflections from walls).

Silent monitoring: Fixed deployment of C-Ku type, using the anti-clutter characteristics of the Ku band to detect cross-border smuggling drones.

Security for major events: Drones equipped with Type B radars monitor the air above crowds to prevent drone attacks.

Sniper Detection: Ka-band (Type A) can detect bullet trajectory (needs to be used with acoustic sensors), and the 0.5-second update rate supports real-time counterattack guidance.

Specifications

Specifications		YFR-04A	YFR-04B	YFR-04C	YFR-04C-Ku	YFR-04D
Radar band		Ka	X	X	Ku	Ku
Technical system		Linear frequency modulation pulse
Scanning method		Azimuth phase scanning + pitch phase scanning
Detection distance	Typical target (DJI Phantom 4)	≥2km	≥3km	≥6km	≥5km	≥8km
Coverage	Azimuth	±45°	±45°	±45°	±45°	±45°
Coverage	Pitch	0°～30°	0°～50°	0°～30°	0°～50°	0°～30°
Detection accuracy	Distance	≤8m	≤8m	≤8m	≤8m	≤8m
	Azimuth	≤0.5°	≤0.5°	≤0.4°	≤0.4°	≤0.3°
	Pitch	≤1.0°	≤0.5°	≤0.4°	≤0.4°	≤0.3°
Data rate		0.5s	0.5s	0.5s	0.5s	0.5s
Target capacity		≥500 batches	≥500 batches	≥500 batches	≥500 batches	≥500 batches
Weight		≤15kg	≤12kg	≤25kg	≤22kg	≤40kg
Size		≤450×350×135(mm)	≤350×350×155(mm)	≤480×350×150(mm)	≤350×350×150(mm)	≤770×580×350(mm)
Power consumption		≤500W	≤400W	≤600W	≤600W	≤1500W
Installation method		Fixed/Vehicle/Drone	Fixed/Vehicle/Drone	Fixed/Vehicle/Drone	Fixed/Vehicle/Drone	Fixed/Vehicle/Drone
