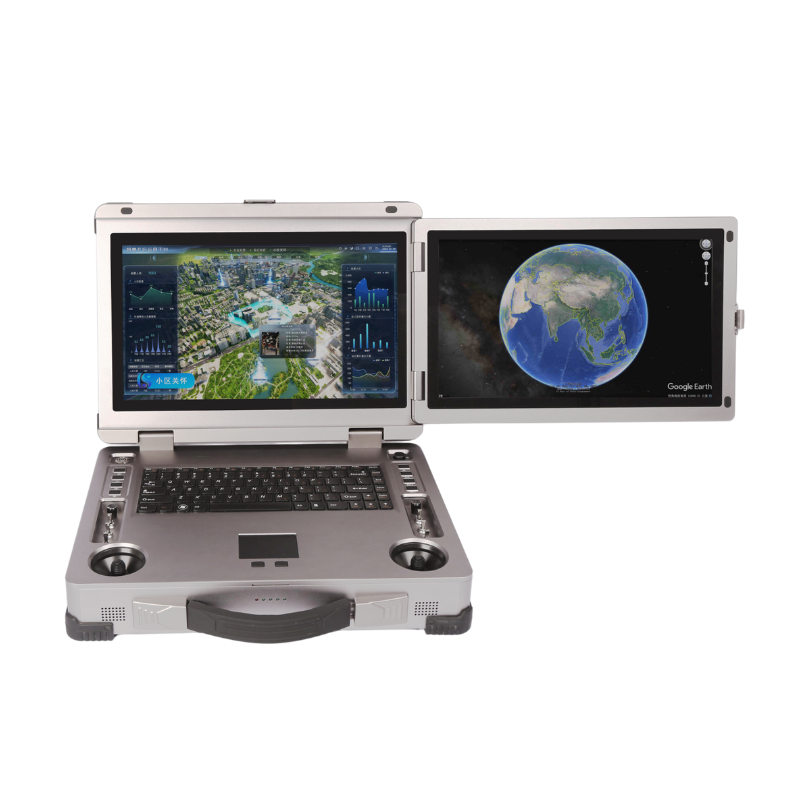

SW-G25 Dual-Screen GCS (Ground Control Station): Mission-Critical Drone Operations Center

Key Features

1. Superior Visual Interface

• Dual 15.6″ 1000nit sunlight-readable displays

• Full HD 1920×1080 resolution per screen

• 10-point multi-touch capability

• Anti-glare optical bonding technology

2. Advanced Processing Power

• Intel i7-11 generation processor

• 16GB RAM (expandable to 32GB)

• 512GB SSD storage (user-upgradable)

• Optional discrete graphics card

3. Comprehensive Control System

• 18 physical control channels

• Dual SBUS output capability

• Configurable input devices:
  ✓ 2 flight joysticks
  ✓ 1 thumb joystick
  ✓ 8 three-speed levers
  ✓ 2 knobs
  ✓ 2 two-speed levers

Ruggedized Design

The rugged drone controller withstands harsh operating conditions:

• Aluminum alloy chassis with silicone anti-slip coating

• 8 reinforced impact-resistant corners

• IP54 rating for dust and water resistance

• -20°C to 60°C operational temperature range

• Vibration-resistant component mounting

Connectivity Options

This high brightness GCS offers extensive interfaces:

• 2 × USB 3.0 ports

• 1 × HDMI output

• 1 × Gigabit Ethernet

• 2 × SMA antenna connectors

• Internal expansion:
  ✓ 6 × RS232 serial ports
  ✓ 2 × USB headers
  ✓ 1 × RJ45 port
  ✓ 12V 3A power output

Field Operation Advantages

1. Extended Mobility

• Integrated 18Ah battery (4-6 hours runtime)

• Hot-swappable power options

• Compact dimensions (416×330×100mm)

• 10kg weight for portability

2. Versatile Software Support

• Windows 10/Linux compatible

• Supports major drone control software

• Customizable interface layouts

• Multi-platform SDK available

Technical Specifications

Display System

• Panel type: IPS LCD

• Contrast ratio: 1000:1

• Viewing angles: 178°/178°

• Color gamut: 72% NTSC

Wireless Connectivity

• Dual-band WiFi (2.4G/5.8G)

• Bluetooth 4.0

• Optional 4G/LTE module

Physical Controls

• Backlit mechanical buttons

• Water-resistant membrane switches

• Ergonomic layout for prolonged use

Applications

Military & Defense

• Tactical UAV operations

• Border surveillance

• Reconnaissance missions

Industrial Inspection

• Power line monitoring

• Pipeline surveys

• Wind turbine inspections

Public Safety

• Search and rescue

• Firefighting coordination

• Police surveillance

Comparative Advantages

Vs. Tablet Solutions:
✓ 3× brighter displays
✓ 5× more control channels
✓ Ruggedized construction

Vs. Traditional GCS:
✓ 30% smaller footprint
✓ 40% longer battery life
✓ Modern processor architecture

System Architecture

The multi-channel RC system features:

• Redundant power inputs

• Isolated signal pathways

• EMI-shielded components

• Conformal coated PCBs

Customization Options

• Display calibration services

• Control surface programming

• Enterprise software integration

• Branding and labeling

Why Professionals Choose SW-G25

1. Uncompromised Visibility
   The 1000nit displays remain readable in:
   → Direct sunlight
   → Rain/snow conditions
   → Low-light environments

2. Complete Control
   18 physical channels enable:
   → Simultaneous UAV control
   → Payload management
   → Camera operation
   → Mission parameter adjustment

3. Reliable Performance
   Military-grade components ensure:
   → Continuous operation in extreme conditions
   → Shock/vibration resistance
   → Long-term field durability

Future-Ready Platform

• Firmware-upgradable architecture

• Modular expansion capability

• Adaptable to new drone protocols
