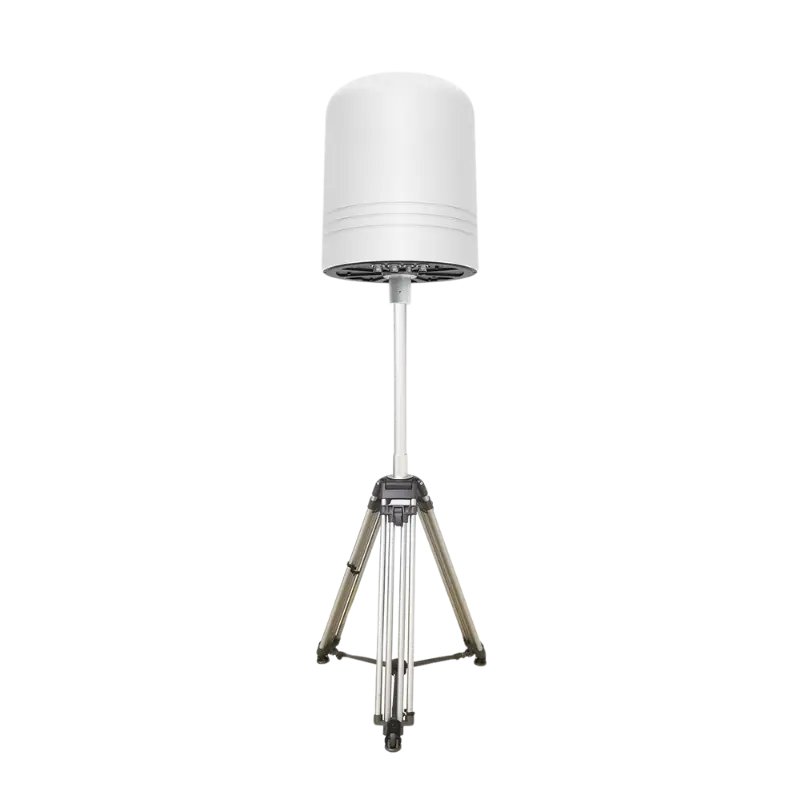

Fixed Drone Detector Identify Unknow DJI/Autel/FPV Long Detection Range Wide Frequency

$19,449.00

Login to view prices

Talk with staff

X1D Fixed Drone Detector System: Comprehensive Airspace Security Solution

The drone detection system X1D represents the cutting edge in UAV monitoring technology, offering military-grade detection capabilities for civilian and government applications. This advanced long range drone detector provides continuous 24/7 surveillance with an impressive 5km operational range in urban environments, making it the ideal solution for protecting sensitive locations against unauthorized drone activity.

Unparalleled Detection Technology

At the core of this TDOA drone detection system is a sophisticated RF scanning array that monitors frequencies from 100MHz to 6GHz – covering all commercial drone communication protocols. The system’s directional antennas provide ~10° azimuth accuracy, enabling precise threat localization even in complex urban environments. Unlike radar-based systems, the X1D’s passive detection method ensures zero electromagnetic interference, making it perfect for urban airspace monitoring near airports, government buildings, and other sensitive locations.

Key Operational Features

  1. Comprehensive Drone Identification
    The X1D excels at FPV drone identification, automatically classifying:

  • All DJI models (Mavic, Phantom, Matrice series)

  • Autel Robotics drones

  • Custom FPV racing drones

  • DIY/homemade UAVs

  • WiFi-controlled consumer devices

  1. Flexible Deployment Options

  • Standalone directional detection (2-4km range)

  • Networked configuration using TDOA (Time Difference of Arrival) technology

  • Seamless integration with jamming systems for automated countermeasures

  • Cloud-based management for multi-site operations

  1. Advanced Technical Specifications

  • Frequency range: 100MHz-6GHz (covers all known drone control links)

  • Max detection range: 5km (environment dependent)

  • Direction finding accuracy: ~10° RMS

  • Protection rating: IP65 (dustproof and waterproof)

  • Operating temperature: -30℃ to 65℃

  • Dimensions: Φ420×530mm (compact for easy deployment)

  • Weight: 15kg (rugged yet portable design)

System Architecture

The X1D’s innovative design incorporates:

Installation and Maintenance

Designed for permanent installations, the X1D features:

  • Standard mounting interfaces for poles or rooftops

  • Pre-calibrated antennas for rapid deployment

  • Self-diagnostic systems with remote monitoring

  • Low power consumption (under 100W typical)

  • Maintenance-free operation with automatic updates

Urban Deployment Advantages

This urban airspace monitoring solution specifically addresses city environment challenges:

  • No interference with existing communications systems

  • Effective operation amidst RF noise and congestion

  • Minimal false alarms from non-drone signals

  • Discreet operation with no visible emissions

Military and Government Applications

  • Base protection against surveillance drones

  • VIP security during public events

  • Border surveillance operations

  • Prison perimeter monitoring

  • Critical infrastructure protection

Commercial Applications

  • Airport runway protection

  • Power plant security

  • Oil refinery monitoring

  • Corporate campus security

  • Large venue protection (stadiums, convention centers)

Network Capabilities

When multiple X1D units are deployed:

  • Automatic TDOA triangulation pinpoints drone locations

  • Centralized threat display shows real-time air picture

  • Automated alerting based on threat level

  • Historical data logging for forensic analysis

Future-Proof Design

The system’s upgradable architecture ensures:

  • New drone models can be added via software updates

  • Emerging frequency bands can be monitored

  • Advanced detection algorithms can be implemented

  • Integration with new countermeasure systems

Why Choose X1D?

Compared to competing systems, the X1D offers:
✓ Longer detection range (5km vs typical 3km systems)
✓ Better accuracy in urban environments
✓ More comprehensive drone identification
✓ Easier integration with existing security systems
✓ Lower total cost of ownership

Technical Superiority

The X1D’s TDOA drone detection capability provides:

  • Real-time position updates (1Hz refresh rate)

  • Velocity and heading estimation

  • Altitude determination

  • Flight path prediction

Reliability Features

  • Redundant power inputs

  • Fail-safe operation modes

  • Environmental sensors (temperature, humidity)

  • Tamper detection alerts

For organizations requiring the most advanced drone detection system available, the X1D delivers unmatched performance in its class. Its combination of long-range detection, precise FPV drone identification, and urban airspace monitoring capabilities makes it the ideal choice for modern security challenges.

The system is currently deployed protecting:

  • International airports in Europe and Asia

  • Military bases worldwide

  • Government complexes

  • Nuclear power facilities

  • Major public event venues

With its rugged construction, advanced detection algorithms, and flexible deployment options, the X1D sets the new standard for long range drone detector technology. Whether as a standalone solution or part of an integrated air defense network, it provides reliable, continuous protection against evolving drone threats.








Overview

X1D is a drone detector with drone intrusion
alarm, identification, direction-finding and
networking location capabilities. One signal
device detects and finds drone direction.
Multiple X1Ds network to locate drones via
TDOA (time difference of arrival) algorithm. It
emits no signal which makes it interference-
free and suitable for urban environment.

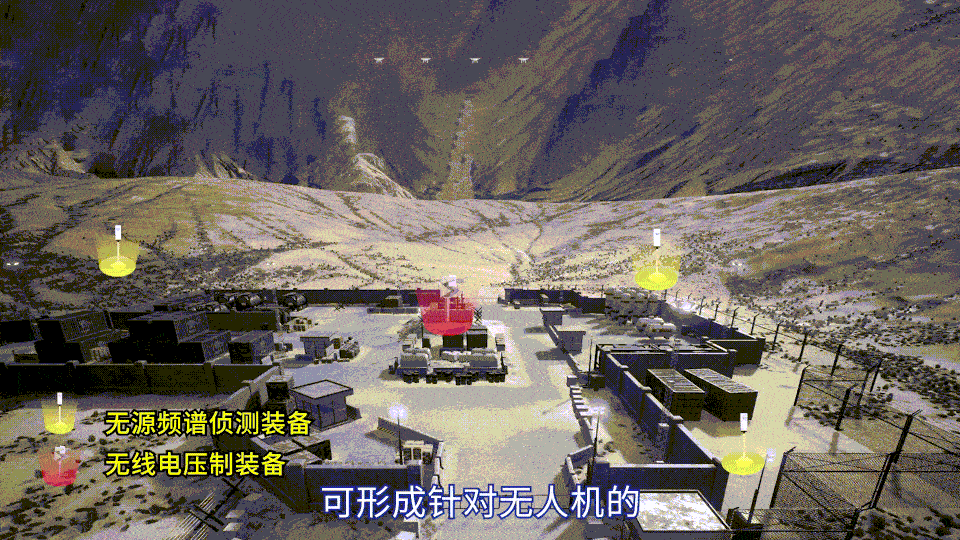

Anti-Drone Solution

Multiple X1Ds network to locate drones

Able to identify mainstream drones as well as FPV, DIY

Able to link with jammers for automatic jamming

Single X1D finds drone direction

Able to scan signal within 100MHz ‒ 6GHz

Able to scale up via networking

Features

Specification

Detection
Azimuth error ~ 10°
Frequency 100MHz-6GHz
Detection range Urban environment 2 - 5 km (Varies due to environment and drone model)
Direction-finding range 2~4km (Varies due to environment and drone model)
Protection grade IP65
Working temperature -30℃~65℃
Size Φ*H:(420*530)±10mm/td>
Weight 15kg
