Ground Control Station (GCS) SW-G22 Double Touch Screen 15.6”

$5,999.00

Login to view prices

Talk with staff

SW-G22 Ground Control Station (GCS): Advanced Dual-Screen Operations Center

The ground control station SW-G22 sets new standards for drone mission control with its innovative dual-screen design and extended 7-hour operational capability. Engineered for demanding field applications, this rugged workstation combines high-performance computing with comprehensive flight control interfaces.

Key Features

  1. Advanced Visual System

  • Primary 15.6″ 1000nit FHD display (1920×1080)

  • Secondary 12.1″ 1000nit touchscreen (1280×800)

  • Sunlight-readable IPS panels with anti-glare coating

  • 10-point multi-touch capability on both screens

  1. High-Performance Computing

  • 11th Gen Intel Core i7 processor

  • 8GB RAM (expandable to 32GB)

  • 256GB SSD storage (user-upgradeable)

  • Optional discrete graphics support

  1. Comprehensive Flight Control

  • 20 physical control channels

  • Dual SBUS output capability

  • Configurable input devices:
    ✓ 2 precision flight joysticks
    ✓ 1 thumb control joystick
    ✓ 6 three-speed paddle shifters
    ✓ 2 adjustment knobs
    ✓ 8 programmable buttons

Ruggedized Field Workstation

This GCS features:

  • Aircraft-grade aluminum alloy chassis

  • Anti-slip silicone protective coating

  • 8 reinforced impact-resistant corners

  • IP54 rating against dust and moisture

  • -20°C to 60°C operational range

Connectivity & Expansion

The dual screen GCS offers:

  • 2 × USB 3.0 ports

  • 1 × HDMI output

  • 1 × Gigabit Ethernet

  • 2 × SMA antenna connectors

  • Internal expansion:
    ✓ 6 × RS232 serial ports
    ✓ 2 × USB headers
    ✓ 1 × RJ45 network port
    ✓ 12V 3A power output

Extended Field Operation

  1. Exceptional Battery Life

  • 18Ah high-capacity battery

  • 6-7 hours continuous operation

  • Hot-swappable power options

  1. Wireless Capabilities

  • Dual-band WiFi (2.4G/5.8G)

  • Bluetooth 4.0 connectivity

  • Optional 4G/LTE module

Technical Specifications

Display System

  • Brightness: 1000nit (both displays)

  • Contrast ratio: 1000:1

  • Viewing angles: 178° horizontal/vertical

  • Touch technology: Projected capacitive

Control System

  • Channel resolution: 4096 steps

  • Latency: <15ms

  • USB-HID compatibility

Physical Attributes

  • Dimensions: 397×330×92mm

  • Weight: 8kg (including battery)

  • Vibration resistance: 5-500Hz, 5G

Professional Applications

Aerial Survey & Mapping

  • Simultaneous UAV control and data monitoring

  • Real-time GIS processing

  • Photogrammetry workflow management

Defense & Security

  • Tactical surveillance operations

  • Border patrol missions

  • SWAT team coordination

Industrial Inspection

Comparative Advantages

Vs Consumer Tablets:
✓ 2× brighter displays
✓ 3× more control channels
✓ 5× longer battery life

Vs Traditional GCS:
✓ 25% more compact
✓ 30% lighter weight
✓ Modern processor architecture

System Architecture

The 20-channel rugged field workstation incorporates:

  • Redundant power pathways

  • Isolated signal processing

  • EMI-shielded components

  • Conformal coated circuitry

Customization Options

  • Control surface programming

  • Enterprise software integration

  • Display layout configurations

  • Brand-specific customization

Why Choose SW-G22?

  1. Unmatched Visibility
    The dual 1000nit displays ensure readability in:
    → Direct sunlight operations
    → Adverse weather conditions
    → Low-light environments

  2. Complete Command
    20 physical channels enable:
    → Multi-UAV control
    → Payload management
    → Camera operation
    → System monitoring

  3. Field-Ready Reliability
    Military-grade construction provides:
    → Shock/vibration resistance
    → Extreme temperature operation
    → Long-term durability

Future-Proof Platform

  • Firmware upgradeable

  • Modular expansion capability

  • Adaptable to emerging protocols

For professionals requiring a long battery life GCS with uncompromised performance, the SW-G22 delivers superior control capabilities in a rugged, portable package. Its combination of dual high-brightness displays, extensive control options, and extended operational duration makes it the ultimate choice for critical drone operations.

Overview

GCS, gound control staiton, rugged field workstation, dual screen GCS, long battery life GCS

The GCS SW-G22 redefines field operations with its military-grade construction and professional-grade features. Designed for demanding environments, this rugged workstation combines dual ultra-bright displays with comprehensive flight control capabilities for professional UAV applications.

For demanding field operation workstation requirements, the SW-G22 delivers professional-grade performance in a rugged, portable package. Its combination of superior displays, extensive control options, and robust construction makes it the ideal choice for serious drone operators across industries.

GCS, gound control staiton, rugged field workstation, dual screen GCS, long battery life GCS

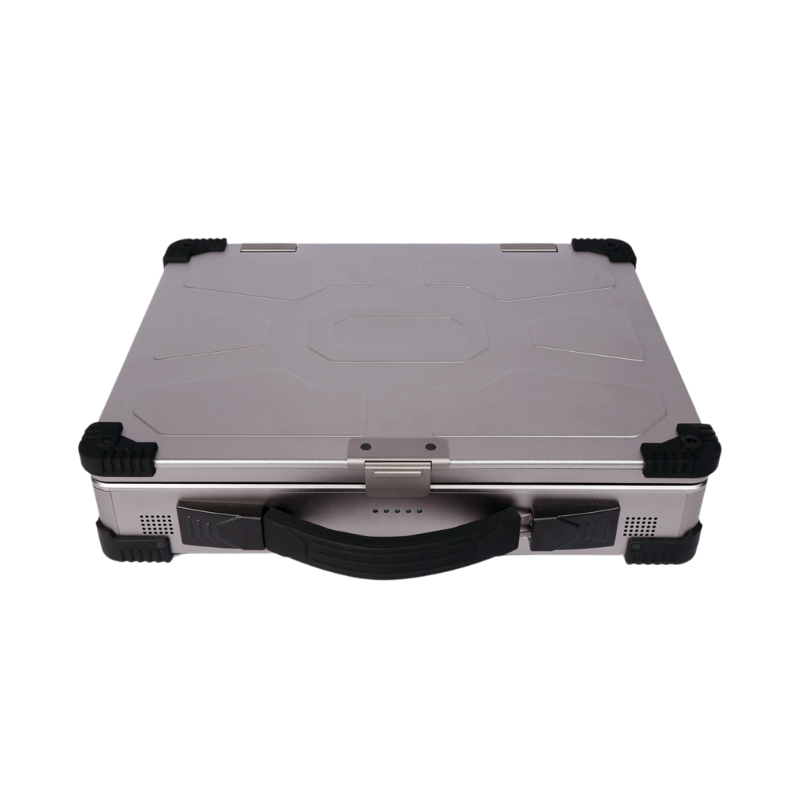

Water-proof and dust-proof shell

Equipped with keyboard and trackpad

Intel I7-11 gen CPU

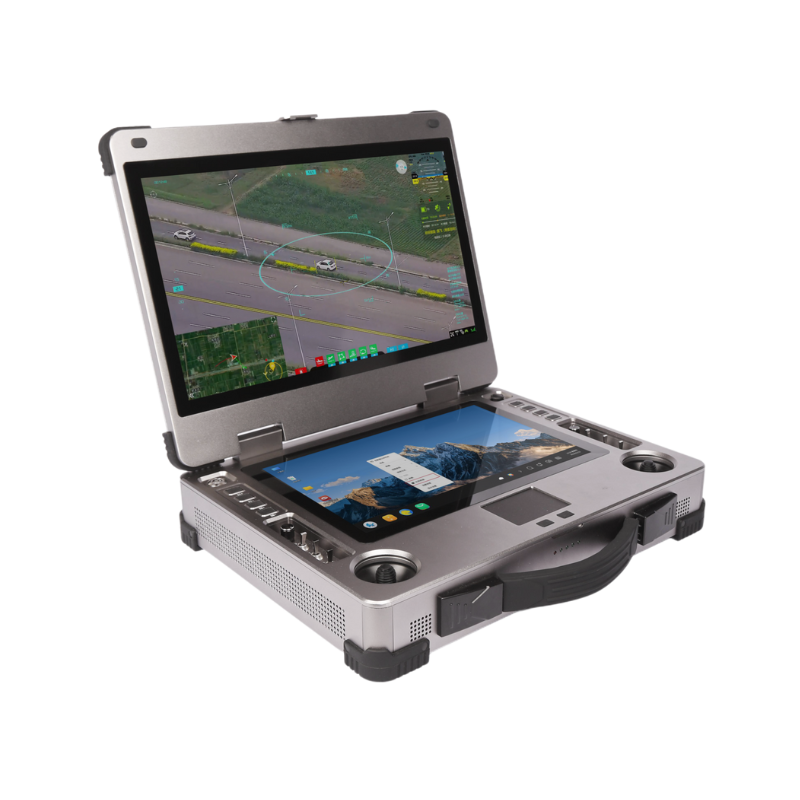

15.6” + 12.1” double screen with 1000nit lightness

Support independent graphic card

Alluminum material with high protective level

Features

Specification

Specification Table
Item Specification
System Windows 10/Linux
CPU Intel i7 - 11
Memory & storage 8G & 256GB (optional)
Wifi 2.4G/5.8G Wifi, Bluetooth 4.0
Screen 15.6 inches, 1920*1080
12.1 inches, 1280*800
Touch screen 10-point touch
External interface 2*USB 3.0/1*HDMI/1*LAN/2*SMA-KF
Brightness 1000nit
Dimensions 397*330*92mm
Battery 16.8V, 18AH
Working time 6-7h
Weight 8kg
Working temperature -20~60℃
Remote control output 20 channels-dual SBUS output/USB-HID
Physical channel 2*Flight joystick/1*Thumb joystick/6*Three-speed paddle shifter/2*Knob/8*button
Reserved space 175*130*41mm
Internal reserved interface 6*R S232/2*USB /1*R J 45
Internal reserved power supply 12V 3A
