BDU Camera EO/IR/LFR YH-301 Laser Range Infrared Thermal Reconnaissance Pod

$15,500.00

& Free Shipping
IR camera, EO, LRF, pod, surveillance, thermal imaging
IR camera, EO, LRF, pod, surveillance, thermal imaging, thermal camera
True Color False Color
YH 30 details 02

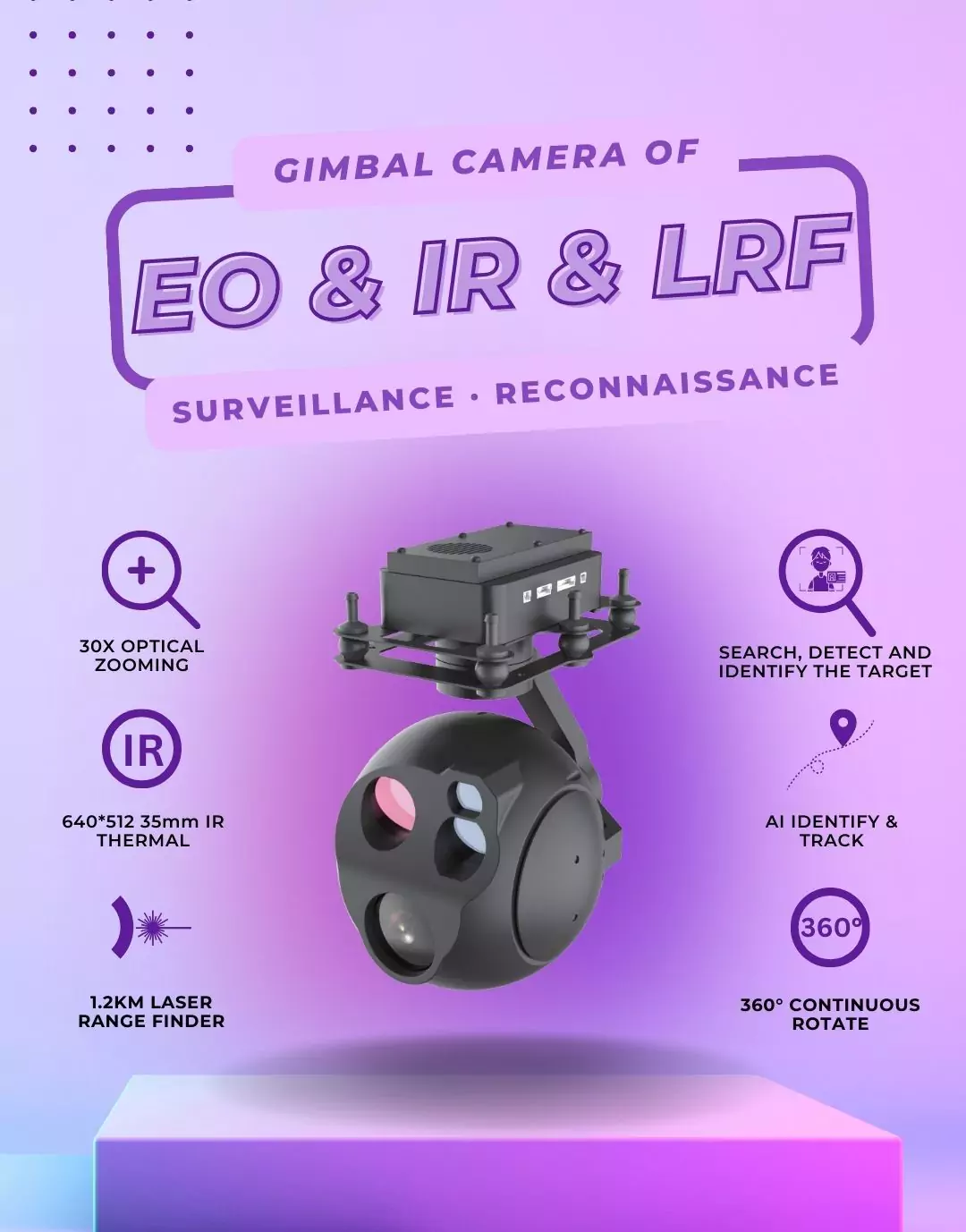

YH-301 . Features

Utilizing an excellent 30x visible light camera, the image is stable and clear, providing a close-up view.

Professional, highly sensitive infrared thermal imaging allows for subtle detection of nighttime targets, with intuitive and accurate temperature detection.

Outstanding high-precision inertial stabilization platform ensures 360° continuous, unobstructed tracking of both visible light and infrared targets.

Military-grade alloy components, industrial-grade devices, adapting to various demanding industrial application environments.

Precision optoelectronic integration design results in a smaller, lighter, and more powerful product compared to others in its class.

Communication supports RS422, RS232, PWM, S.BUS; video supports HDMI, SDI, synchronous 422, and network connectivity.

YH-301 represents a revolutionary advancement in surveillance and reconnaissance technology, meticulously crafted to excel in the most demanding operational environments. While maintaining uncompromising performance standards, this cutting-edge military pod offers a cost-effective solution without sacrificing quality or functionality.

Designed with precision and versatility in mind, YH-301 is tailor-made for a wide range of mission profiles, from anti-crime operations to counter-smuggling and anti-terrorism efforts. Its seamless integration of advanced sensors and imaging capabilities ensures comprehensive situational awareness, empowering law enforcement and military personnel with the critical intelligence needed to effectively monitor, assess, and respond to evolving threats.

Whether deployed in urban settings or remote regions, YH-301 delivers unparalleled performance and reliability, making it an indispensable asset for police and military forces worldwide. With its ability to adapt to diverse operational scenarios, this versatile military pod stands ready to support a multitude of missions, safeguarding communities and enhancing national security with unparalleled efficiency and effectiveness.

Technical Specification

Infrared Camera (IR)
Detector Type Uncooled Focal Plane Array
Detector Resolution 640×512
Lens Focal Length 35mm
Field of View 12º×10º (±5%)
Color Palette 8 options
Digital Zoom ×2, ×4, ×8
Temperature Measurement Range -20℃ to 150℃ (Thermal version)
Temperature Measurement Accuracy ±2K or 2% (Thermal version)
Image Storage Full temperature data (Thermal version)
Video Storage Full temperature data (Thermal version)
Visible Light Camera (EO)
Resolution 1920×1080
Lens Focal Length 4.3mm to 129mm
Horizontal Field of View 63.7° to 2.3°
Optical Zoom 30x, Auto Focus
Fog Penetration
Image Storage Format jpg
Video Storage Format avi
Laser Rangefinder (LRF)
Wavelength 905nm
Maximum Range ≥1.2km
Range Accuracy ≤2m
Servo Platform
Azimuth Angle 360° × n
Elevation Angle -120° to +90°
Roll Angle -60° to +60°
System Parameters
Image Tracking Automatic tracking of selected targets
Power Supply Voltage DC +20V to +36V
Power Stable power consumption: ≤20W
Weight ≤1Kg

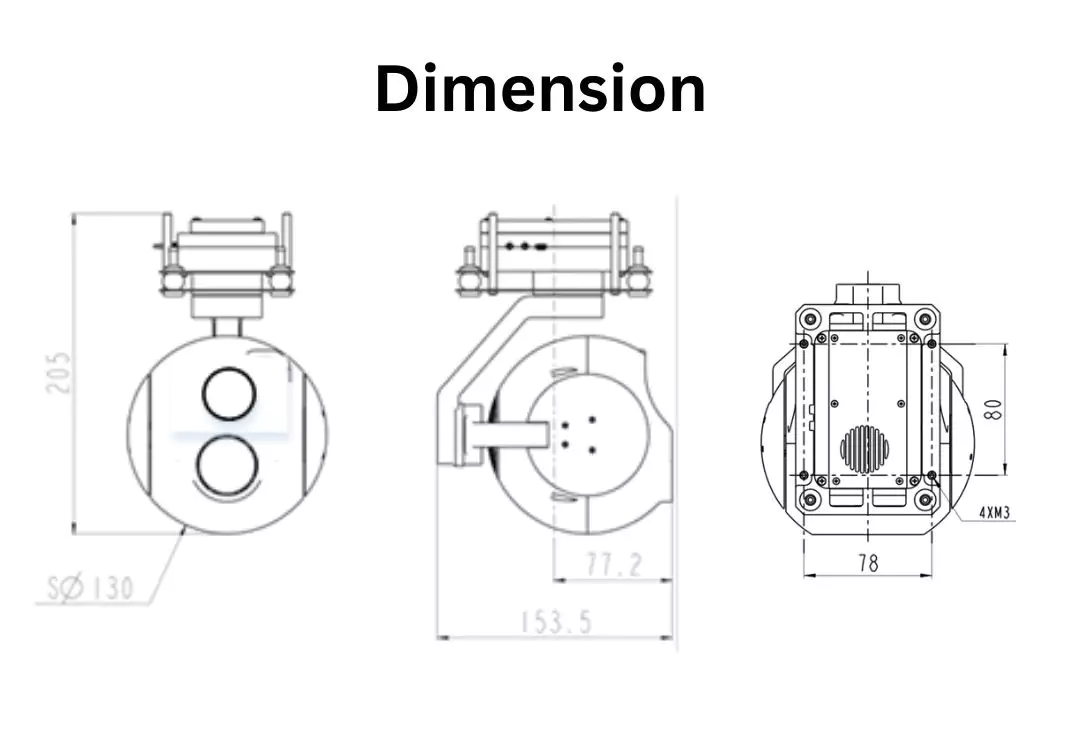

Volume ≤131mm × 155mm × 208mm
Interfaces
Control Interface RS422/RS232/PWM/S.BUS
Video Interface HDMI/SDI/Sync422/Gigabit Ethernet
Storage Interface Mini SD card/32G
Environmental Adaptability
Operating Temperature -20℃ to +55℃ (-40℃ optional)
Storage Temperature -40℃ to +60℃
Protection Level Suitable for flying in light rain

Recommended Surveillance Solution:

pointing, showing, woman-2649315.jpg

UAV RTF platform+
EO/IR camera+
Videolink+Battery

Weight 1.05 kg
Dimensions 13.1 × 15.5 × 20.8 cm
