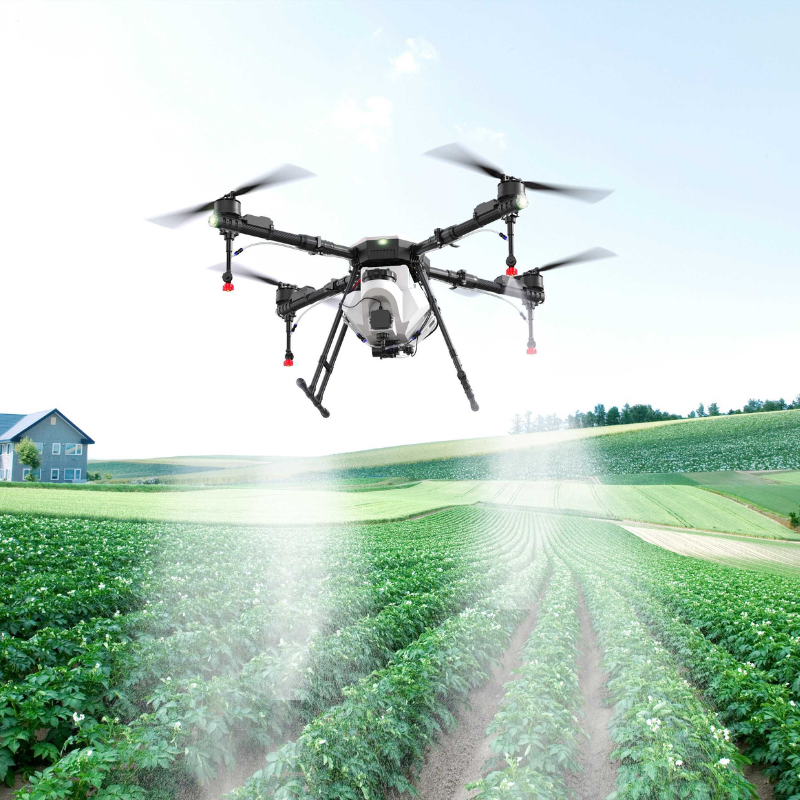

Working Principles of Multi-Rotor Agricultural Protection Drones
Multi-rotor agricultural protection drones rely on coordinated rotor systems and integrated control algorithms to achieve stable flight and precise pesticide application. Below is a detailed breakdown of their operational mechanisms:
1. Flight Mechanics
The core of a multi-rotor drone lies in its rotor configuration and thrust regulation:
- Rotor Layout and Thrust Generation
Multi-rotor drones (e.g., quadcopters, hexacopters) use multiple rotors to generate lift. Each rotor spins independently, creating downward airflow that produces upward thrust. For example, in a quadcopter, two rotors spin clockwise (CW) and two counterclockwise (CCW) to balance torque and prevent unwanted rotation. - Attitude Control
Flight maneuvers are achieved by varying rotor speeds:- Vertical Movement: Increasing/decreasing all rotor speeds simultaneously lifts or lowers the drone.
- Pitch (Forward/Backward): Accelerating rear rotors tilts the drone forward, converting thrust into horizontal motion.
- Roll (Left/Right): Adjusting speeds on opposite-side rotors tilts the drone laterally.
- Yaw (Rotation): Increasing CW rotor speeds while reducing CCW speeds (or vice versa) induces rotational torque.
- Aerodynamic Efficiency
Rotor blades are designed with specific diameters and pitches (e.g., “8045” denotes 8-inch diameter, 4.5-inch pitch) to optimize thrust-to-power ratios. Carbon-fiber blades are preferred for their stiffness and reduced vibration, enhancing flight stability.
2. Powertrain Components
The drone’s propulsion system integrates motors, controllers, and batteries:
- Brushless DC Motors
These motors convert electrical energy into mechanical rotation with high efficiency. Key parameters include:- KV Rating: Defines RPM per volt (e.g., 1000 KV = 1000 RPM/V). Lower KV motors pair with larger props for heavy lifting, while higher KV motors suit smaller props for agility.
- Torque and Power: Matched to rotor size to ensure adequate thrust without overloading the motor.
- Electronic Speed Controllers (ESCs)
ESCs regulate motor speed via PWM signals from the flight controller. Advanced ESCs include protections for overheating, overcurrent, and signal loss. - Battery Systems
Li-Po batteries provide high energy density. Voltage (e.g., 4S = 14.8V) and capacity (e.g., 5000 mAh) determine flight duration, typically 10–30 minutes for electric drones.
3. Flight Control System
Stability and automation rely on sensors and algorithms:
- Inertial Measurement Unit (IMU)
Combines gyroscopes and accelerometers to measure angular velocity and linear acceleration, enabling real-time attitude estimation. - GPS/GNSS Navigation
Satellite positioning ensures precise route following and geofencing. Drones can execute autonomous missions with waypoint-based flight paths. - Obstacle Avoidance
LiDAR or stereo cameras detect obstacles, triggering evasive maneuvers to prevent collisions. - Closed-Loop Control
The flight controller processes sensor data to adjust motor speeds, maintaining desired altitude, heading, and position. PID controllers minimize errors between commanded and actual states.
4. Pesticide Application System
Spraying mechanisms integrate fluid dynamics and precision control:
- Nozzle Design
Flat-fan nozzles atomize liquid into droplets (typically 100–300 μm) for optimal coverage. Pressure regulators maintain consistent flow rates despite flight speed variations. - Variable-Rate Technology (VRT)
Sensors (e.g., NDVI cameras) assess crop health, adjusting spray volumes in real time. For example, denser vegetation triggers higher application rates. - Pump and Tank Integration
Diaphragm pumps draw pesticide from tanks, delivering it to nozzles via tubing. Tanks (10–20 L capacity) are mounted centrally to preserve balance.
5. Operational Considerations
Efficiency and safety depend on adherence to best practices:
- Flight Parameters
Maintain altitudes of 1.5–2 meters above crops to minimize drift. Adjust speed (3–6 m/s) based on crop density and terrain. - Wind and Weather
Avoid operations in winds exceeding 5 m/s to prevent spray drift. High humidity reduces evaporation but may increase droplet settling times. - Maintenance Protocols
Clean nozzles and filters post-operation to prevent clogs. Store pesticides securely to comply with environmental regulations.
By integrating these principles, multi-rotor agricultural drones enhance crop protection efficiency while reducing labor and chemical usage. Their adaptability to diverse terrains and crops makes them indispensable tools in modern precision agriculture.
